3. How to configure the UPDD smart magnifier (zooming on plugins)

The Smart Magnifier is already setup and you do not need to go over the steps below.

If you need to change the behavior of the Smart Magnifier here are the steps to do so.

If the Smart Magnifier shows the desktop instead of zooming on the MP Host plugin see here

First make sure you have the latest UPDD version installed. This should be normally obtained from Touch Base.

Allow the necessary access on Mac OS.

Open the UPDD Commander Settings from the top bar on the Mac

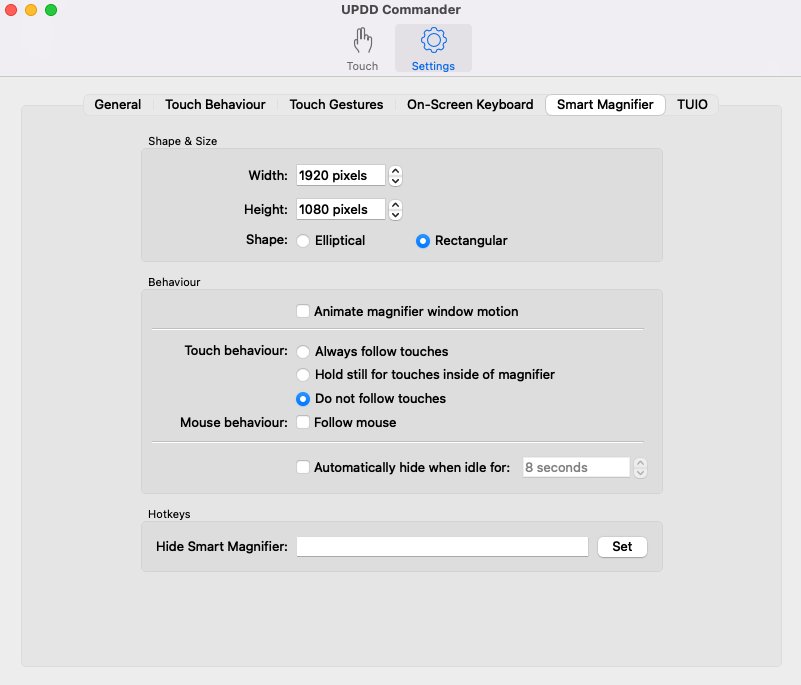

Go to Smart Magnifier tab and set the:

1. Width to 1920

2. Height to 1020

3. Rectangular Shape

4. and to Not follow touches

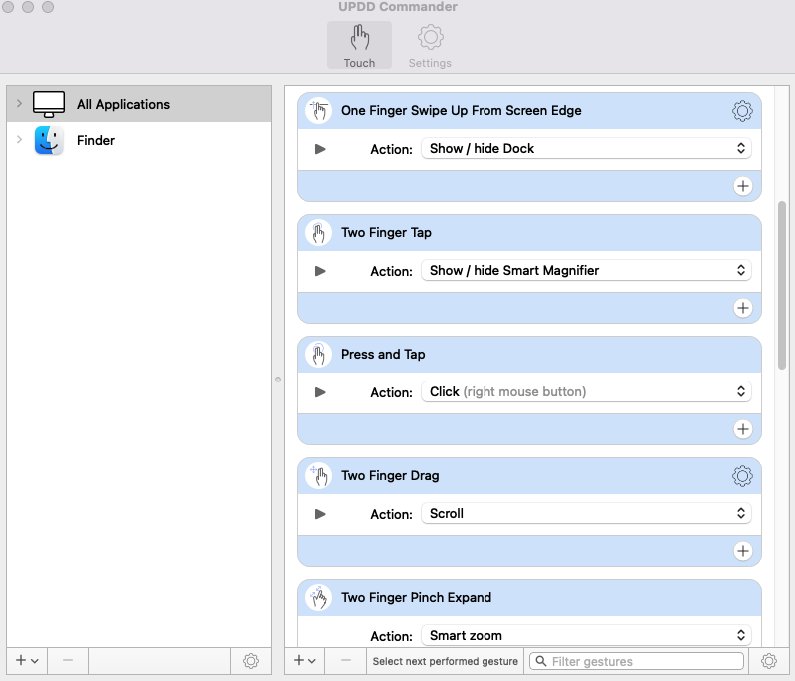

   5. Navigate to All Applications

   And set the:

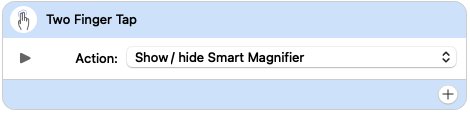

   Two Finger Tap to

   Action: Show/Hide the Smart Magnifier




   Optionally you can set the

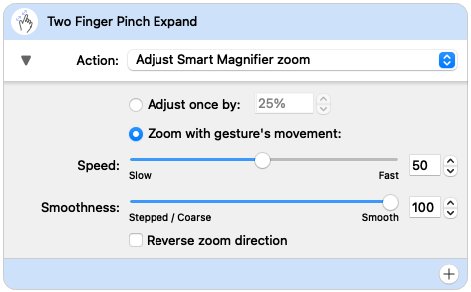

   Two Finger Pinch Expand to

   Action: Smart zoom




   Set the Magnification to your preference ie 200%










            Then set the amount of

            Zoom with gesture movement.
