13. Background Images and Encoder Colors

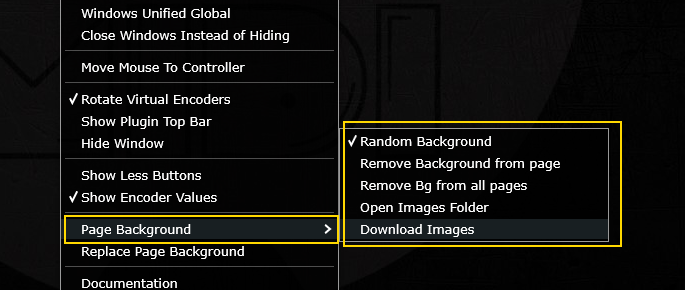

Background Images

You can load background images to each page of the MPH. You can drag and drop an image, jpg or png format to the current page you are working on, from your file explorer. The image must be of 1920 x 1080 px resolution, jpg or png. The image will be saved when saving a preset and be placed in the Images folder on the same folder level as the Presets folder, in the MP/Host folder on your computer.


Encoder Background Colors

Right/Left clicking on the inner area of each encoder will display a palette of colors which you can select to color code the encoders. It’s a good practice to color encoders that belong in the same group, like an ADSR envelope.  These encoder assigned colors are saved in multi host and single host presets.


You can disable the left click to show not show the color palette by editing the host.properties file in a text editor and changing the last line:
<VALUE name="disable_left_click_color_palette_on_encoders" val="0"/>

to

<VALUE name="disable_left_click_color_palette_on_encoders" val="1"/>

Then, save the file.

Remove the MP Host and load it again and now it should not show the color palette when left clicking in the center of the encoder.
